Cluster Research Results

Introduction

With the advent of low-prices high-performance PC's, coupled with high-speed networking, it has become possible to harness the power of several CPUs to perform intensive tasks in a fraction of the time it would normally take. The main reason for clustering computers together is that it is easier to get several computers to work together on a single task than it would be to build a single machine as fast as the sum of the cluster. This is analogous to using several oxen to pull a cart instead of genetically engineering a super-oxen with three times the strength. The current limitations yield two choices: wait for better technology, or increase the amount of processing power by adding more computers.

The overall goal is to determine the balance between the number of tasks spawned for a particular job and the number of hosts available. A simple determination of the performance of a cluster of older machines that are heterogeneous is also a side effect of the use of the cluster. What we would like to see is a comparison of three different computational methods on the cluster and the changes for each method over a range of hosts and number of processes. We will be using time as the measurable output from a configuration.

The cluster consists of 9 PCs, ranging from Pentium 75's to Pentium II 200's. The operating system of choice was NetBSD 1.5, mainly because of its small footprint, and easy of installation. X-windows was also installed on two nodes, to function as work stations. Network connectivity was initially via a 5-port hub and 8-port switch, later replaced by a single 12-port hub. Details of each machine summarized in the table below.

host	IP	CPU (MHz)	RAM (MB)	functions
ajax	192.168.1.1	133	16	NFS server, default route, timed server, location of master passwords
rosebud	192.168.1.2	133	32
epic	192.168.1.3	133	32
fusion	192.168.1.4	200	128
optimus	192.168.1.5	75	16
void	192.168.1.6	75	32
magnum	192.168.1.7	133	64	X workstation
octane	192.168.1.8	166	64
spectre	192.168.1.9	166	48	X workstation

• Installation
  Software installed on all the nodes consisted of the pvm-3.4.3 package, tcsh, and some benchmarking tools. In addition, the two workstations had X-windows and fvwm-2 installed (because it has more functionality than twm).
• Configuration
  Each node received an address in the 192.168.1/24 space. The first machine, 192.168.1.1 was designeated as the default router, timed master, and as the NFS server, since it had the largest parition (5 gigabytes). The /usr/home was exported to each of the nodes. To simplify account creation, consistent host names, and a similar motd on each node, a script was added as an hourly cron job to copy out a new set of passwords, hosts file, motd, rc.conf. The script is below:

  #!/bin/csh

  # if /etc/uploads doesn't exist, create it
  if !( -d /etc/uploads ) then
  mkdir /etc/uploads
  endif

  chown root /etc/uploads
  chmod 700 /etc/uploads

  mount ajax:/etc/uploads /etc/uploads

  # copy over publically readable files
  foreach f (hosts passwd group pwd.db motd )
  cp /etc/uploads/$f /etc/
  chmod 644 /etc/$f
  chown root /etc/$f
  chgrp wheel /etc/$f
  end

  # copy over private files
  foreach f (master.passwd spwd.db hourly_upload )
  cp /etc/uploads/$f /etc/
  chmod 600 /etc/$f
  chown root /etc/$f
  chgrp wheel /etc/$f
  end

  # copy over new crontab
  cp /etc/uploads/root /var/cron/tabs/
  crontab -u root /var/cron/tabs

  umount /etc/uploads


  In addition to various configuration files, the script copies itself out also, allowing global changes to be made easily. Other network services that were added were rwho and timed. Rwho was added so one can quickly determine the load on each of the compute nodes. Timed was added so each node has a consistent clock. Clock consistency is important, becuase the NFS server would update its uploads at five minutes to the hour, and the slaves would fetch these updates on the hour. Any sort of skew would cause headaches should the file be only partially copied over. Timed resolved this before it became an issue.

  Lastly, ssh needed to be configured to fall back to rsh, in order for pvm to be able to spawn itself on each of the slave nodes. In /etc/sshd.conf, the line FallbackToRsh = Yes was uncommented. Some scripts were created to facilitate configuring each node. The first script was downloaded via ftp off the NFS server. Running the script started the necessary rpc services for NFS, then mounted /home. Next, changes were appended to /etc/rc.conf so that the nfs client will be started on boot, and the nfs mount was also appened to the fstab. Lastly, the script determines the hostname by looking for its ip address in the hosts file, then creating the correct /etc/myname file so the hostname gets set on next boot. Finally, the machine was rebooted, to make sure all the changes persisted.

  #!/bin/csh
  # gets this node onto the network

  rpcbind -l
  nfsd

  mount 192.168.1.1:/home /home

  cat /home/conf/rc.conf >> /etc/rc.conf
  cat /home/conf/fstab >> /etc/fstab
  cp /home/conf/hosts /etc/hosts

  set addr = `cat /etc/ifconfig.* | awk '{print $2}'`
  set name = `grep $addr /etc/hosts | awk '{print $3}'`
  echo $name > /etc/myname


The big lesson learned was the optimal structure of a pvm program. Three algorithms were put to the test. Our environment was the computation of the Mandelbrot set, whose complexity translates to cpu-intensive work, an ideal test bench. In addition to computing the set, the master node also kept track of which slave did the calculations, and a histogram was generated.

All tests run were on an 800x600 images, zoomed by 9000 on the point 336,272 with a maximum of 4000 itterations on each point. The resulting image ( see below) has sufficient black area that the full amount of itterations is run, yet it also has enough detail so we can determine the algorithm was correct.

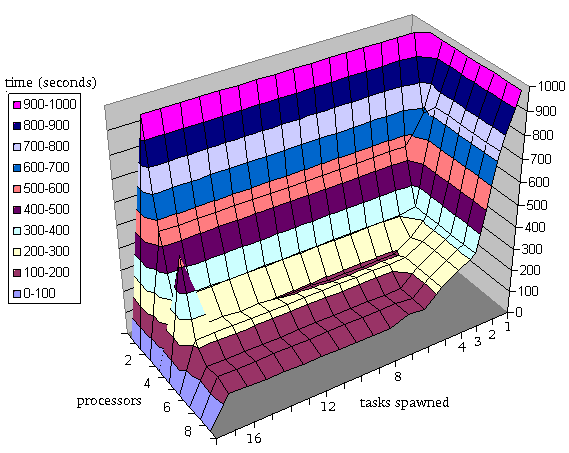

Even with only 8 machines, pvm will spawn more than one process per host if necessary, so with our 8 machines, we were able to varry two parameters (typically the number of hosts, and processes, or packet sizes ) to determine optimal parameters. On the graphs that follow, time is illustrated as a function of both number of hosts, and either processes (itteration by lines), or packet sizes (itteration by blocks ).

The benchmark
All times are based on the set taking 11:25.63 minutes on a single Pentium 133 MHz machine. The 133 MHz machine was chosen because it is close the the average MHz rating per machine (131MHz). The test includes writing the file to disk over NFS. This means, theoretically, that we should be able to compute the set on 8 machines in under 2 minutes.
Itteration by points
The first algorithm ran point by point. N slaves were spawned. Each would receive the location of a point, and would determine if it were part of the set or not, and return the result to the master. Pseudo code follows:

Master:
spawn n slaves
tell each slave the size and coordinates of the image
send out n pieces of initial work
for( j=0; j<height; j++ )
for( i=0; i<width; i++)
 receive a message from any slave
 tell that slave to find point (i, j )
tell all slaves to halt

Slave:
receive initial information
while( 1 ) {
get a point from the master
if its a -1, then halt
determine if the point is in the set, and send the result back
}

The point-by-point algorithm is decidely network-bound. Because the message size (8 bytes) and the response size ( 4 bytes ) were so small, and each task (computing the point) was relatively quick, most of the time is spent sending and receiving messages. As the histogram below illustrates, there was almost even distribution of work (the master machine accounts for slightly more work because it talks over loopback instead of the network interface). The collision light on the hub was lit almost as often as the activity lights for the other hosts. In addition, the histogram yielded intersting results: a static-like pattern, with near-even distribtuion of colors representing each host. The amount of overhead involved in this algorithm is staggering: on a typical system, 5% of cpu time was devoted to interrupt handling, 40% of cpu time was devoted to system (kernel) processes, 35% was used by the pvm daemon, and the remaining 20% for the actual slave process. All these signs support the conclusion that this algorithm was decidely network-bound. More time was spent waiting on lower-level protocols (ie ethernet collisions).


Itteration by lines

The second algorithm ran line by line. N slaves were spawned. Each would revieve the x coordinate of a line, and would compute the results of the mandlebrot for the entire line. The results would be returned to the master in a larger block of data that would be (4*height of picture) bytes.

Master:
spawn N slaves
Tell each slave the size and coordinates of the image
for (i=0;i<N;i++)
tell the slave to process line i
for(j=N;j<width;j++)
recieve an output from a slave
put the output into a data structure
tell the slave to work on the next line
for(i=0;i<N;i++)
recieve an output from a slave
kill the slave that just returned something

Slave:
Receive Initial information about the set
while(1)
Get a line from the master
determine the output of the line.
store the output in a output structure
send the entire output structure to the master

The Line-by-Line algorithm is not network bound as the previous algorithm. The message size is exactly the number of pixles in a line + 1. This means that for the test set our message size is 601 integers. The number of messages is also smaller by far than the point-by-point algorythm because there are only width number of messages sent and width number of messages recieved. (In out test case 800). The histogram results display a pattern that implies that the faster machines get more messages done. The distribution of the colors in the histogram changes with the complexity of the space being generated. The overall color of a region of great complexity is decidedly not an even distribution of the hosts colors as it is for an easy region. The typical run of this algorithm yielded nearly 0% interrupt handling and a similar value for system processes. The slave process was also very low. most of the computing time is spent on the actual slave process. This means that it is more efficient than the Point-by-point method because there is less communication by the pvmd to the master. The large packet size sent also implies that there would be less transmissions and hence fewer interrups on all the systems.



Itteration by blocks

The block itteration also showed a vast improvement over the point-by-point, even though its general structure was the same. The main reason for the improvement was that less time was spent queuing messages, and dealing with network traffic. Despite having larger response packets, each slave took longer to do its computations, thus lessening the chances of network congestion.

Master:
spawn n slaves
tell each slave the size, coordinates of the image, and block size
for( j=0; j<height; j+= yskip )
for( i=0; i<width; i+= xskip)
 receive a message from any slave
 tell that slave to find block yskip by xskip at (i, j )
tell all slaves to halt

Slave:
receive initial information
while( 1 ) {
get a point from the master
if its a -1, then halt
compute the block starting at that point
send the results back to the master
}

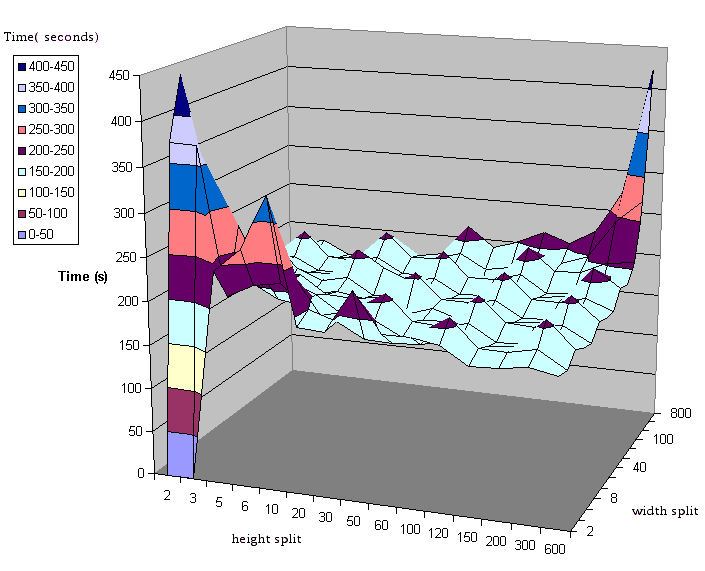

8 Processor timing results:

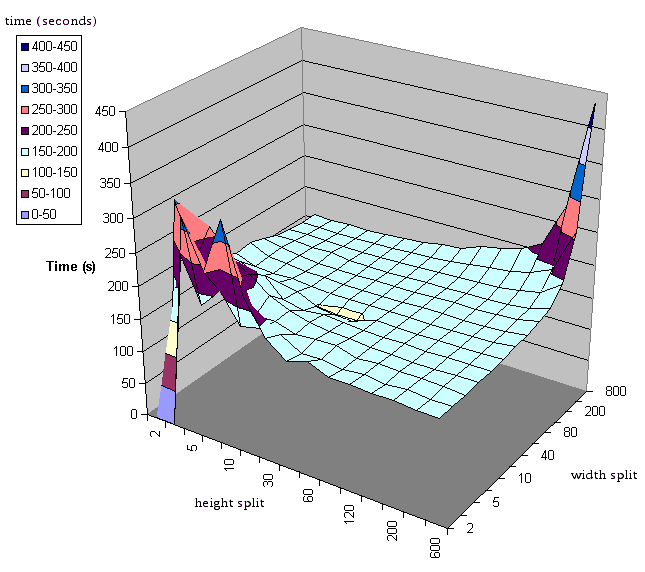

9 Processor timing results:

Some sample histograms


Legend:
